Sensors for Heavy Duty Vehicles

Our solutions cater to the evolving needs of the industry, offering precise monitoring and control systems for a wide range of applications, including engine management, temperature control, fluid level detection, and more.

Designed for durability and accuracy, Cebi sensors ensure optimal performance even in the most challenging environments.

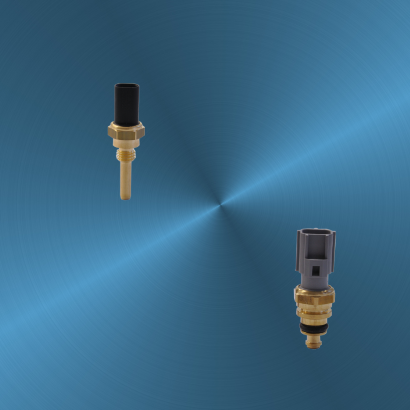

Thermal Management Sensors
  • Applications: Powertrain propulsion ICE and EV, Electronics thermal regulation, Engine block, Cabin comfort, Exterior for HVAC, Cooling circuit, Braking circuit, Turbo
  • Fluid type: Coolant, Fuel, Urea, Air
  • Off the shelf option available

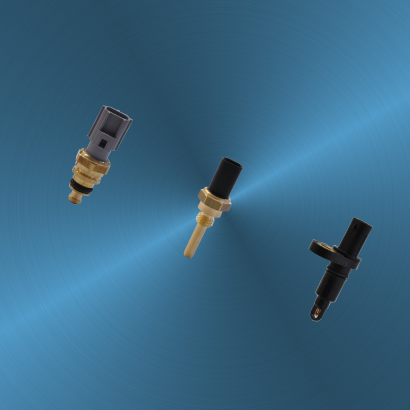

Oil Thermal Management Sensors
  • Applications area: EV cooling with oil, Electronics thermal management with oil, Gearbox, Oil pan
  • Connectors: Customized connectors
  • Off the shelf options available
  • Response time and electrical characteristics: Customized response time and pull up resistance (electrical curve)





Oil Thermal Management Sensors

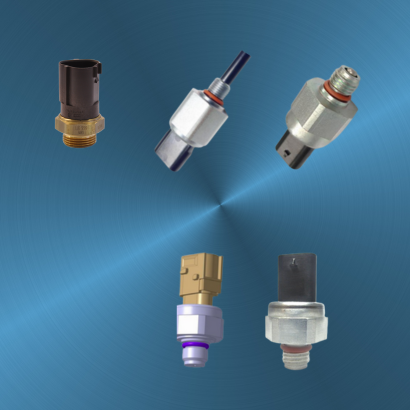

Pressure and Temperature Sensors
  • Applications:
  • Medium: Fuel, oil, refrigerant, air
  • Multiple locations: Oil, fuel filtration, HVAC system
  • Connectors: Customized connectors
  • Accuracy: 1% full scale (2% after lifetime)
  • Response time from 10% to 90%: <5ms
  • Off-the-shelf option available

Pressure and Temperature Sensors

Oil Level Sensors
  • Applications: Oil or coolant level switch,
  • Multiple Locations: Powertrain propulsion ICE, hybrid transmission electronic level sensing
  • Customized geometry and level sensing

Oil Level Sensors

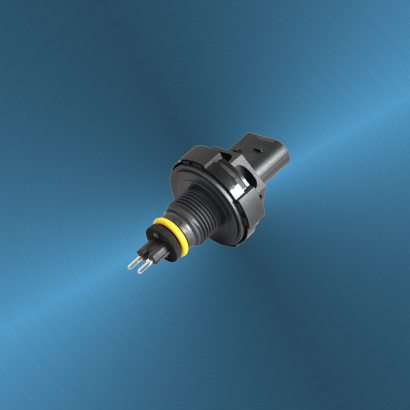

Water Detection Sensor
  • Applications:
  • Locations: Expansion tank, centralized cooling circuit, ionized water condensate, powertrain propulsion ICE and hybrid transmission electronic level sensing
  • Technologies: Capacitive level sensing, reed switch sensing, passive & smart sensors

Water Detection Sensor

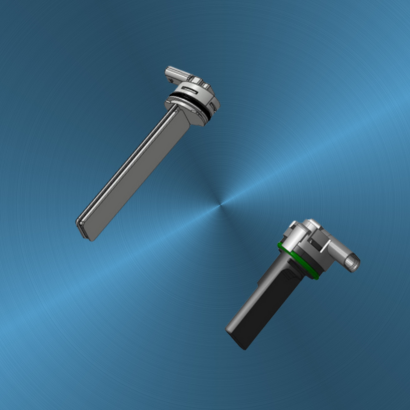

Capacitive Level Sensors
  • Applications: ADAS washer systems, BEV & PHEV expansion tanks, AD-blue tanks, H2 fuel cell droplet separator tanks.
  • In-house designed and manufactured
  • AEC-Q100 certified components
  • High sensitivity and measurement accuracy
  • Accuracy: <± 10 mm
  • Operating temperature: -40°C to +80°C



Capacitive Level Sensors

Position Sensors
  • Applications: Powertrain propulsion ICE / hybrid transmission, position & speed detection
  • Technology: Inductive “coil winding” technology
  • Highly reliable, contactless sensors
  • Resistance: 860 Ohm
  • Off the shelf option available

Position Sensors
