EC Fan Motors
EC fan motors are new generation electric motors that have permanent magnets on the rotor and use an electronic board in order to control the motor. The three-phase motor designed with a permanent magnet rotor makes it a perfect choice for applications requiring precise airflow management.
The electronic control gets the speed reference from a potentiometer (DC 0÷10V external signal) or from a PWM signal. The electronic motor gives an output signal tachometer square wave (with frequency approximately 1 pulse round/second). Cebi EC fan motors are ErP compliant.

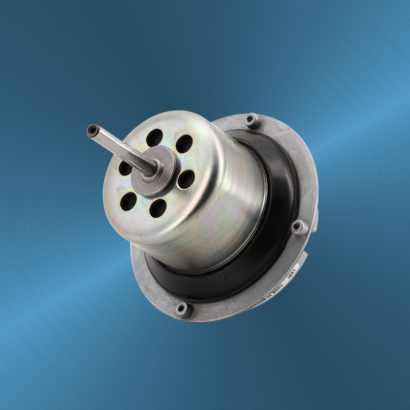

EC Motor with Extended Shaft
- Compact design - Noiseless -Energy efficient
- Variable speed control
- Power input: 20 to 450 Watt, using custom impeller
- Input Voltage: 110 to 230 Vac
- Input frequency: 50 / 60 Hz
- Insulation class F or H
- Class B safety software certification for household appliances.
- Protection level: IP54

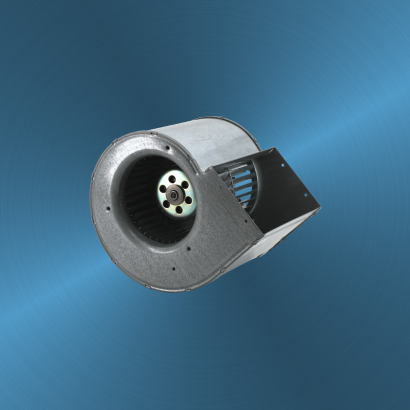

EC Motor Centrifugal Forward Curved Fan
- Compact design solution - Noiseless - Energy efficient
- Variable speed control
- Power input: 20 to 450 Watt, using custom impeller
- Input Voltage: 110 to 230 Vac
- Input frequency: 50 / 60 Hz
- Insulation class F or H
- Class B safety software certification for household appliances.
- Customised Constant Airflow
- Protection level: IP54
EC Centrifugal Backward Curved Fan
- Compact design solution - Noiseless - Higher energy efficient
- Variable speed control
- Power input: 20 to 450 Watt, using custom impeller
- Input Voltage: 110 to 230 Vac
- Input frequency: 50 / 60 Hz
- Insulation class F or H
- Protection level: IP54
- Class B safety software certification for household appliances.

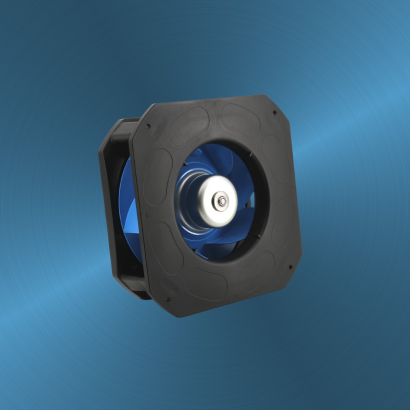

EC S-QUBE Backward Impellers
- Integrated solution with inlet cone and compact solution - Noiseless - Higher energy efficient
- Variable speed control
- Power input: 20 to 450 Watt, using custom impeller
- Input Voltage: 110 to 230 Vac
- Input frequency: 50 / 60 Hz
- Insulation class F or H
- Class B safety software certification for household appliances.
- Protection level: IP54
Our Certifications
