Actuators and Motors

Actuators are essential components in modern vehicles, converting energy into motion to enable precise control of various systems. Cebi brings decades of expertise to actuator technology, delivering high-performance solutions tailored to meet the evolving needs of industry from various sectors.

With a commitment to innovation, Cebi designs and manufactures reliable, efficient actuators that support critical vehicle systems, ensuring seamless operation in both traditional and electric vehicles.

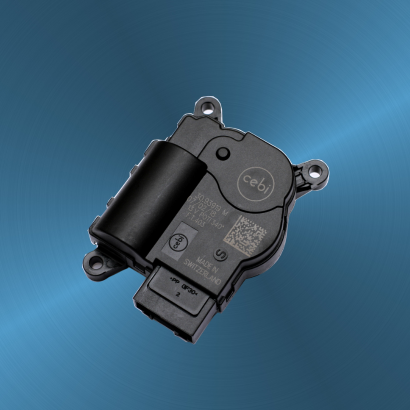

Stepper & DC Actuator
  • Applications: Ventilation distribution, HVAC mode control, Recirculation valves, Heater valves, Fragrance release, Active front grill
  • Actuator Type: Rotary, linear and steppers types
  • Temperature range: -40°C to +85°C
  • Low noise emission

DC Actuator

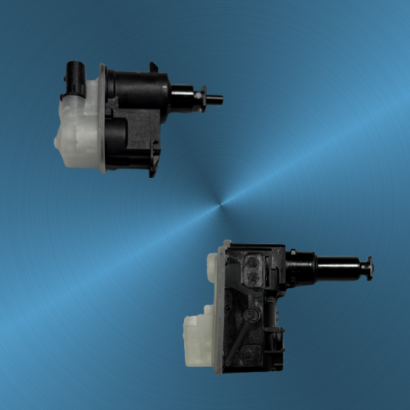

Push Push and Lock Actuator

  • Applications: Lock for recharge and filler flap, refill flap
  • Function : bistable, monostable with microswitch and mechanic
  • Lifetest : >22.500 electrical cycles
  • Emergency release (by emergency cable if requested)
  • Temperature range : from – 40°C to +80°C
  • Closing system : laser welding
  • Hall sensor integration possible



Push Push and Lock Actuator

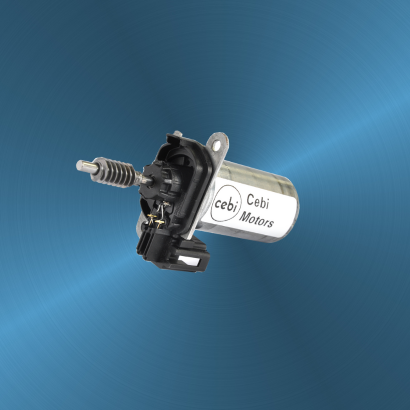

DC Motors

  • Applications: Recliner, seat backrest, height, cushion, window lifters, sliding or side doors, motorized locks
  • Proven reliability
  • Low noise emission
  • Ferrite magnets
  • EMC filter
  • Low weight
  • High performance

Closing Systems Motors

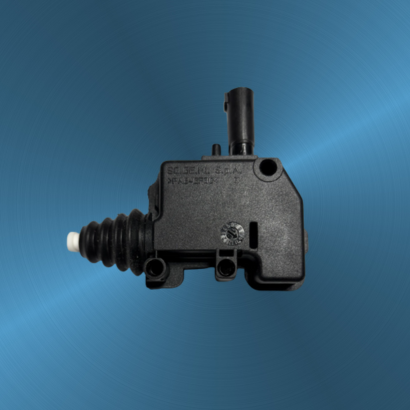

Linear Actuator

  • Applications: Filler flap module, glove box, middle console, parcel shelf
  • Range of Temperature : from – 40 °C to +80 ° C
  • Dust and Water protection: IP6K5
  • Electrical in and out
  • Life test: 100.000 cycles
  • Modular force and stroke

Linear Actuators

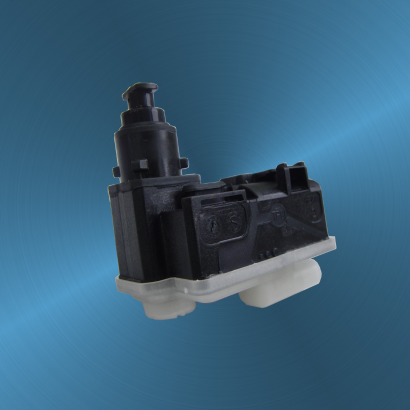

Flap Actuators and Locks

  • Applications: Fuel doors, EV charge ports, glove boxes, interior consoles, water tank refill
  • Large variety of designs based on customer requirements
  • From a basic mechanical version to high-line including switches and diagnostics
  • High water resistance Compact
  • Various mounting versions
  • Specific versions for ecars and hybrid-cars
  • Manual emergency release available

Flap Actuators and Locks

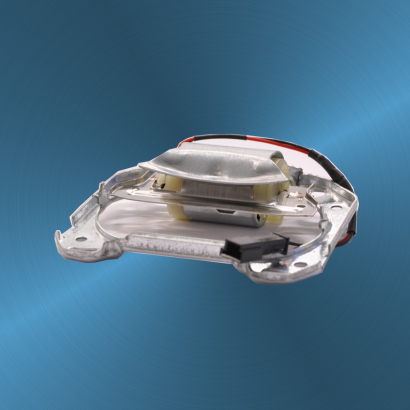

Light Shield Actuator

  • Applications: halogen and xenon headlight beam adjustment
  • Large variety of designs based on customer requirements
  • High degree of customization
  • Fast response time
  • Special steel to withstand temperature up to 140°C

Light Shield Actuator

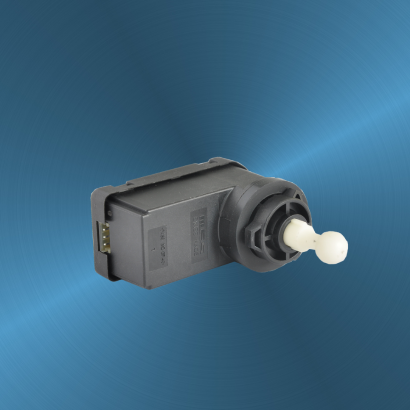

Headlamp Leveling Actuator

  • Applications: Vehicles headlamp light beam adjustment
  • Large variety of designs based on customer requirements
  • Proven reliability
  • High transmission force
  • EMC compliant
  • Screw or bayonet fixing
  • Internal or external housing
  • Variable stroke length
  • Manual or semi-automatic activation mode

HeadLamp Leveling Actuator

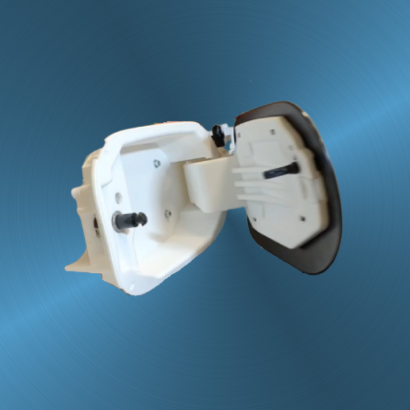

Motorized E-Charge Module
  • Applications: Automated flap movement for ease of electric charging
  • Horizontal, vertical or “garage door” kinematics
  • Hard touch, soft touch or remote actuation
  • Icebreaker feature for reliable operation in adverse conditions
  • Anti-pinch safety function
  • Human interface features for charge state and similar

Electric Filler Flap
